820-2337
Mac Pro 2009 / 2010 / 2012
MacPro4,1 / MacPro5,1
A1289 emc2314 / emc2629

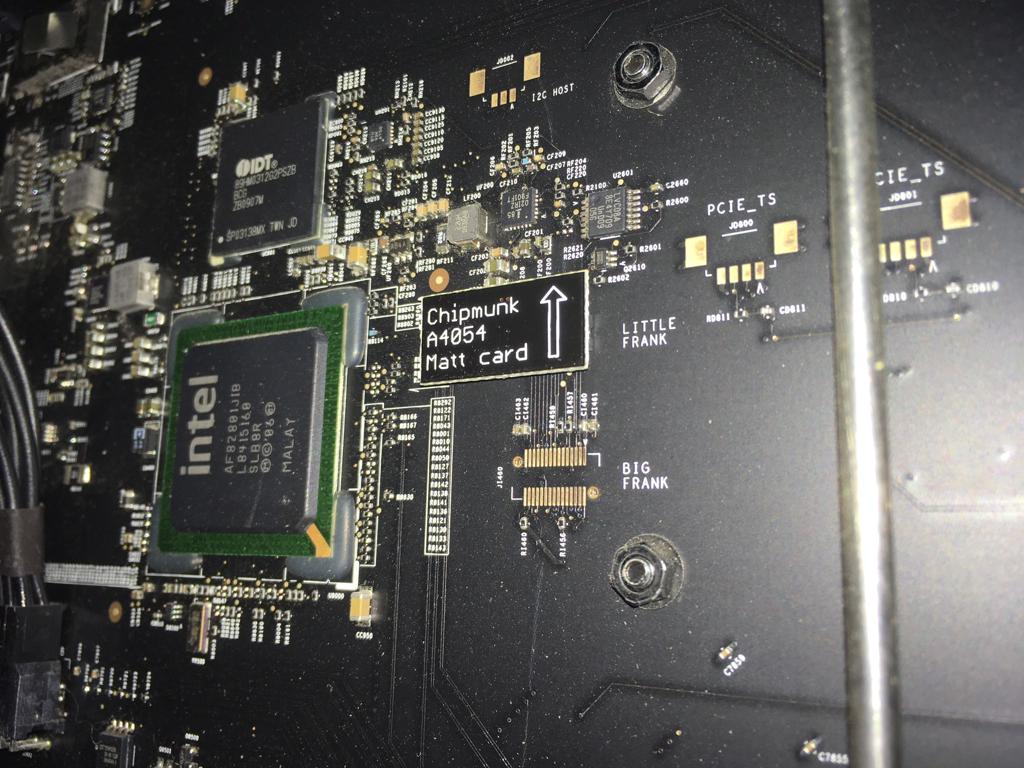

The SPI connector (for placing a Matt card) is placed more-or-less in the middle of the board.
The SPI connector is a Molex-30. To read the ROM use the Medusa with an A4056 EasyFlash adapter.
