820-01598

MacBook Pro

'Touch Bar - 2 x Thunderbolt' 13-Inch

Late 2019

MacBookPro15,4

A2159 emc3301

To open the Mac you need a P5/PL4 Pentalobe screwdriver.

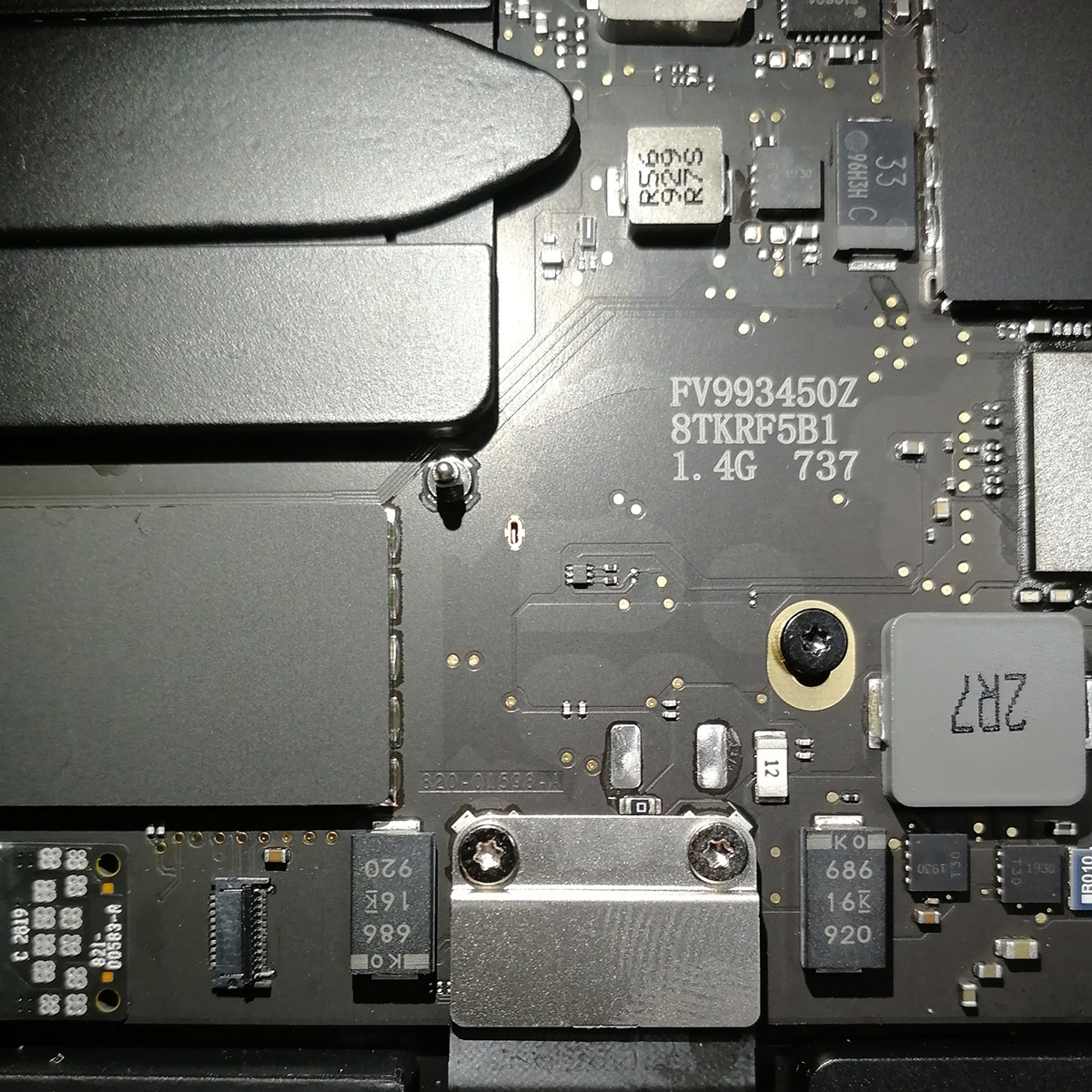

The motherboard number is on the top (easy to reach) side of the motherboard, on the lower edge in the middle, just above the trackpad connector, but in very small print.

The T2-ROM is a WSON-8 chip 3x4mm (32Mbit).

The ROM in on the bottom (hard to reach) side of the motherboard.

Battery flex: 821-00614

Battery connector on MB: FF18-10A

Connector on battery: FF18-6A

Battery: A2171
